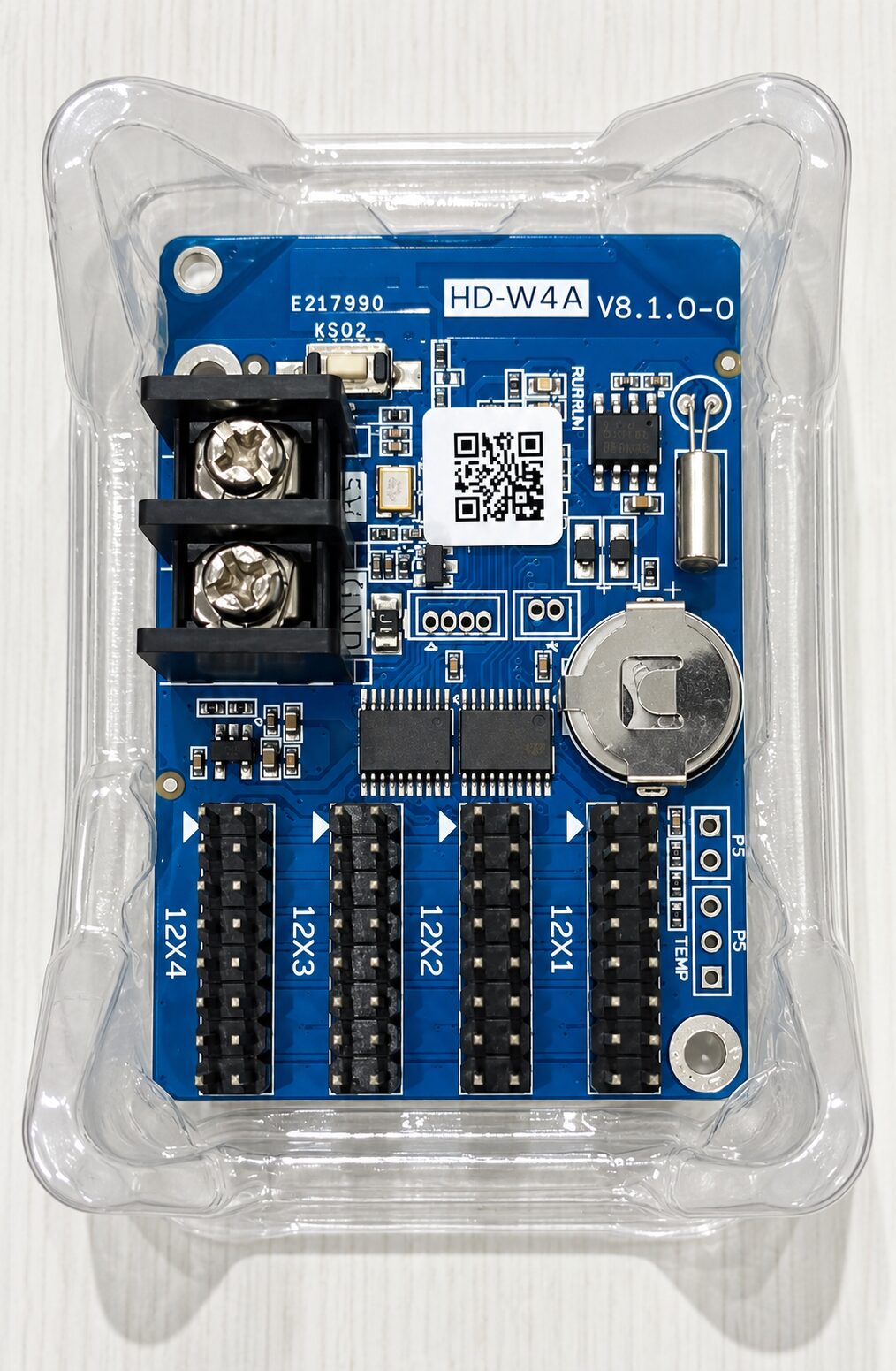

HUIDU HD-W4A is a WiFi-based LED display control card designed for single-color and dual-color LED displays. It is suitable for banner displays, shop signboards, information boards and other LED signage applications.
The controller supports wireless programming through a mobile phone, tablet or computer. It can display text, time, counting, timing and other content. HUIDU specifies a control range of 768 × 64 pixels, maximum width of 1536 pixels, and 4 × HUB12 interfaces.
Key Features
- WiFi wireless control
- Single & dual-color LED support
- 4 × HUB12 interfaces
- Control range up to 768 × 64 pixels
- Maximum width up to 1536 pixels
- Up to 1000 programs
- Up to 20 content areas
- Text, clock and counting functions
- Brightness control
- Suitable for signboards and information displays
Applications
- LED Signboards
- Shop Displays
- Door-Lintel Displays
- Token Display Systems
- Information Display Boards
- Advertisement Boards
- Single/Dual Color LED Displays
Technical Specifications
Specification Details Brand HUIDU Model HD-W4A Type WiFi LED Controller Display Type Single & Dual Color Control Range 768 × 64 Pixels Maximum Width 1536 Pixels HUB Interface 4 × HUB12 Communication WiFi Flash Memory 2 MB* Programs Up to 1000 Content Areas Up to 20 Sensors Temperature, Humidity & Brightness HUIDU’s current product information confirms the 768×64 control range, 1536-pixel maximum width, 4×HUB12 and WiFi communication.
